POWRT system finder

Start with your space.
Find your sound.

Explore every home cinema and background music combination in the 2026 catalog. Compare room recommendations, package components and product specifications.

Room by room

Choose by space and listening style

POWRT recommends C28r for 20–30 m² and S10r above 30 m². Larger rooms can add surround speakers and subwoofers. Confirm the final layout against room conditions.

Explore 4 cinema system combinations with selectable surrounds, plus 4 background music combinations.

7.1 panoramic sound · dual 8-inch bass

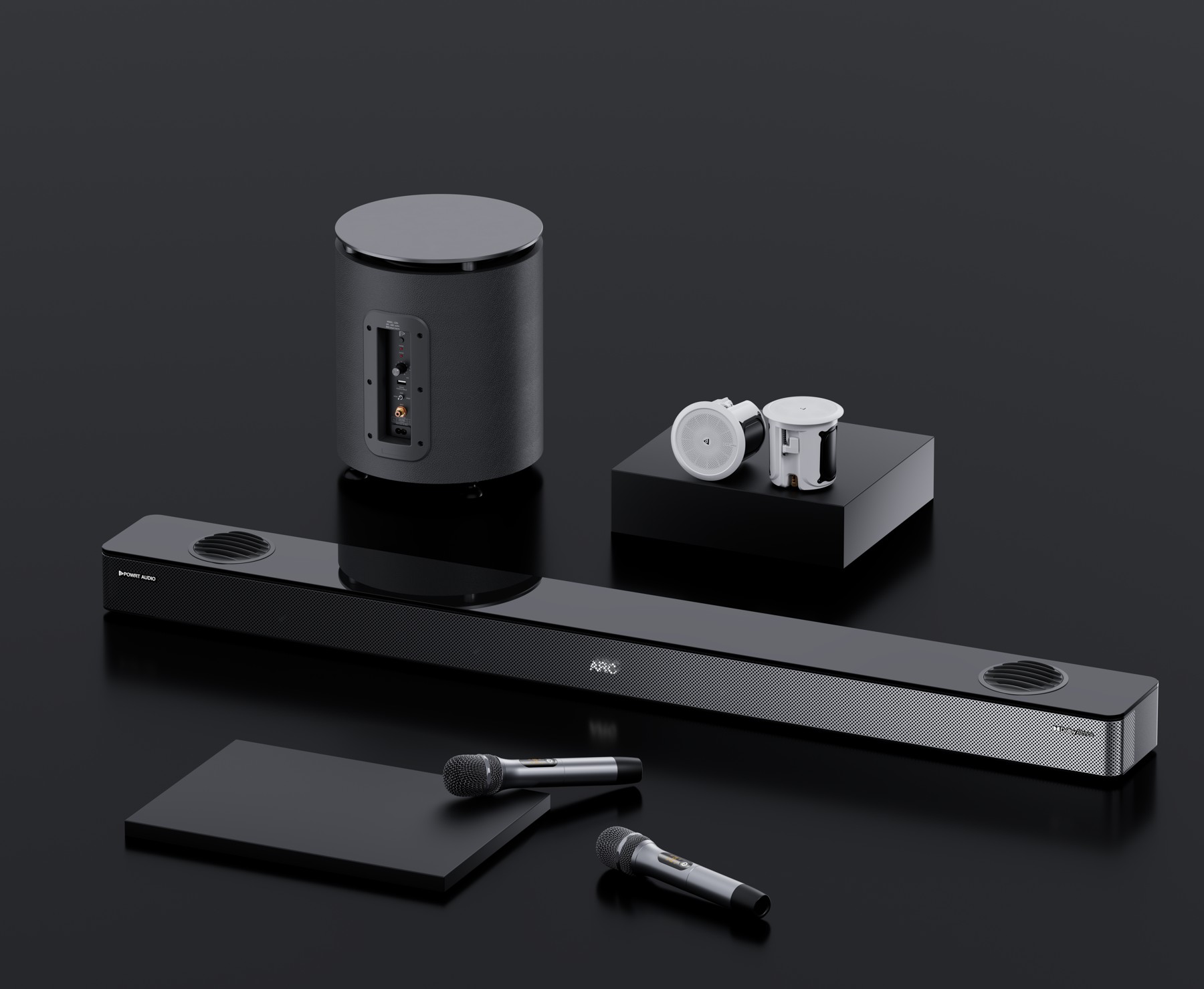

BAR7.1 + C28r

Recommended for 20–30 m² living rooms for movies, music and karaoke. C28r adds balanced bass; larger rooms can add rear surrounds or another subwoofer.

Package: BAR7.1 ×1 · C28r ×1 · microphones ×2 · i9 ×2

Choose surround speakers to update the kit image:

Selected: i9 ×2

Explore full system ↗

Package and component specifications

BAR7.1360 W short-term RMS; 8 drivers; 160 W surround amplifier; 60 Hz–20 kHz; 1080 × 67 × 112 mm; 5.8 GHz transmission.

C28rDual 8-inch driver and passive radiator; 500 W short-term RMS; 30 Hz–200 Hz; 111 dB max output; 80–120 Hz crossover; 5.8 GHz wireless.

i9 surround2.75-inch; 65 Hz–20 kHz in-wall; 20–80 W; 106 dB max; 6 Ω; Ø90–95 mm cutout, depth >100 mm.

i8 Pro surround2.5-inch; 50 Hz–20 kHz in-wall; 20–100 W; 108 dB max; 6 Ω; Ø85 mm cutout, depth >70 mm.

Dolby Atmos · living room recommendation

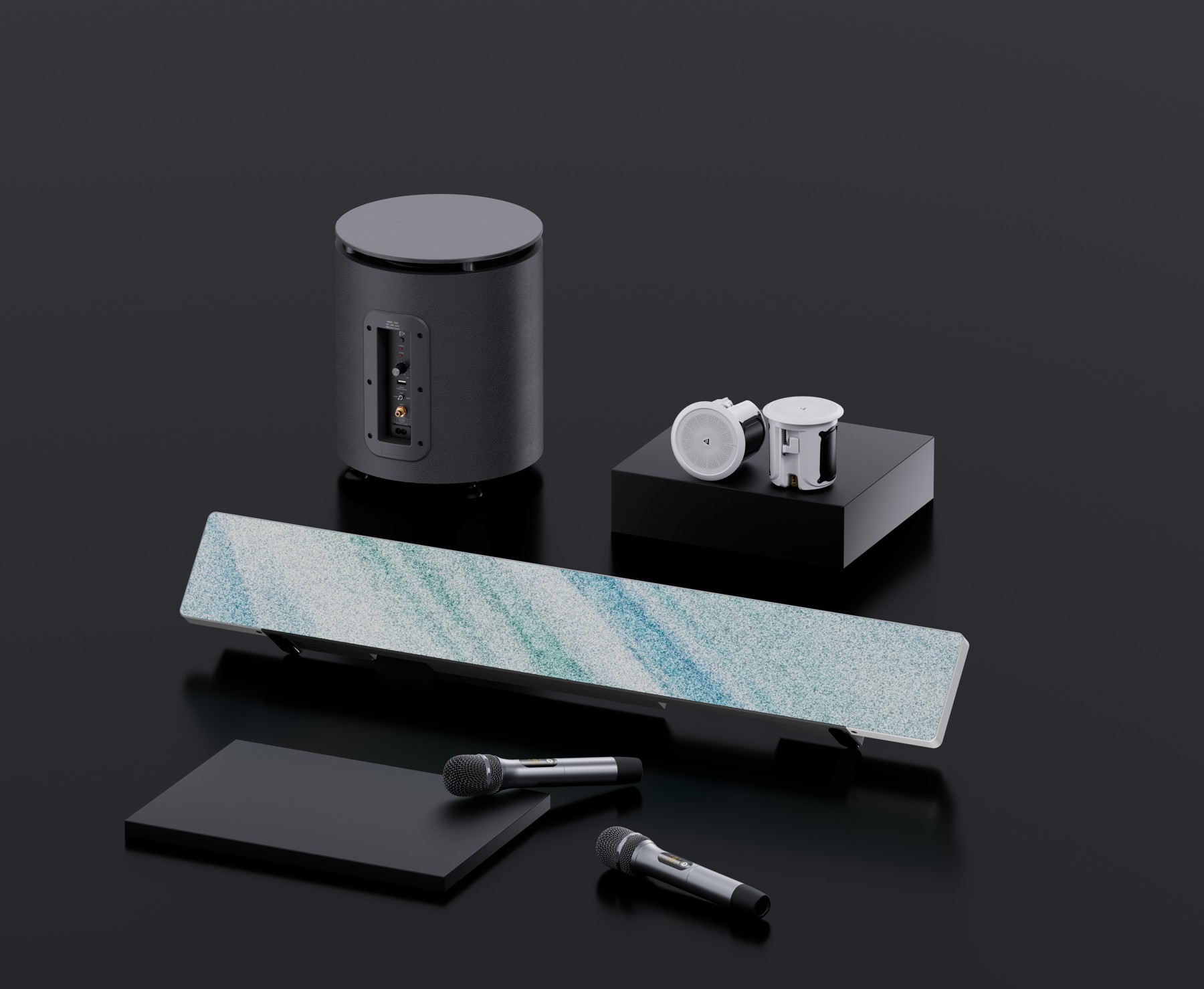

UT-1 + C28r

For 20–30 m² living rooms, home cinema and karaoke. Pair UT-1 with C28r for balanced bass; larger rooms can add rear surrounds or another subwoofer.

Package: UT-1 ×1 · C28r ×1 · microphones ×2 · i9 ×2

Choose surround speakers to update the kit image:

Selected: i9 ×2

Explore full system ↗

Package and component specifications

UT-1Dolby Atmos; 5 drivers; 400 W short-term RMS; 60 Hz–20 kHz; 800 × 60 × 112 mm; scene switching and dual-mic ECHO.

C28rDual 8-inch; 500 W short-term RMS; 30 Hz–200 Hz; 111 dB max output; 80–120 Hz crossover; 5.8 GHz wireless.

Surround choicesi9 ×2/4; i8 Pro ×2/4; or WS-1 ×2. i9 cutout Ø90–95 mm / depth >100 mm. i8 Pro cutout Ø85 mm / depth >70 mm. WS-1: 200 W short-term RMS each.

In the boxUT-1 ×1, C28r ×1, wireless microphones ×2, plus the selected surround configuration listed in the catalog.

7.1 panoramic sound · dual 10-inch bass

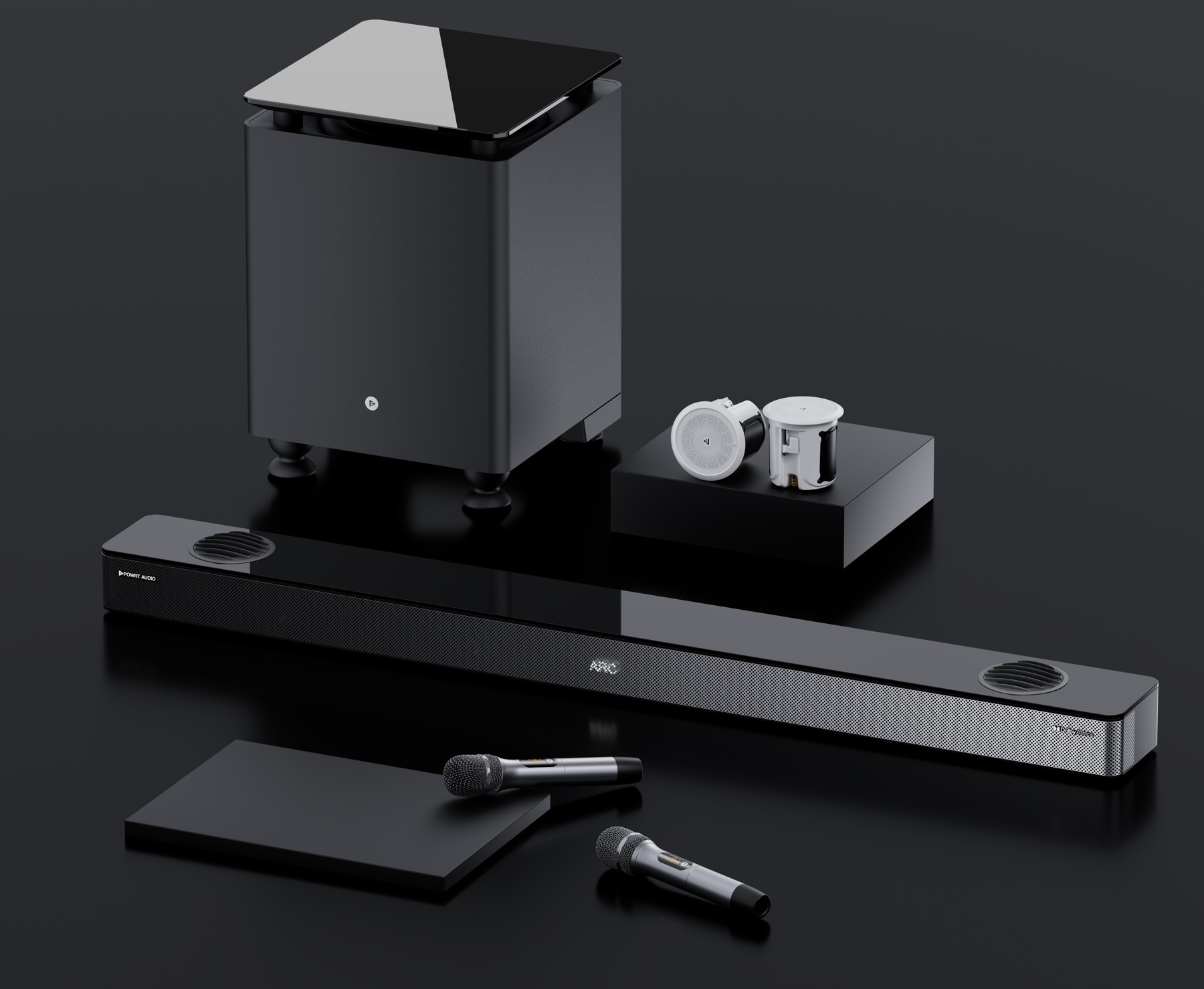

BAR7.1 + S10r

Recommended for rooms above 30 m² and dedicated cinemas where stronger bass impact is a priority. Larger spaces can add rear surrounds and multiple subwoofers.

Package: BAR7.1 ×1 · S10r ×1 · microphones ×2 · i9 ×2

Choose surround speakers to update the kit image:

Selected: i9 ×2

Explore full system ↗

Package and component specifications

BAR7.1360 W short-term RMS; 8 drivers; 160 W surround amplifier; 60 Hz–20 kHz; 1080 × 67 × 112 mm.

S10rDual 10-inch driver and passive radiator; 1,000 W short-term RMS; 25 Hz–200 Hz; 119 dB max output; 80–160 Hz crossover; 5.8 GHz wireless.

i9 surround20–80 W; 65 Hz–20 kHz in-wall; 106 dB max; Ø90–95 mm cutout; depth >100 mm.

i8 Pro surround20–100 W; 50 Hz–20 kHz in-wall; 108 dB max; Ø85 mm cutout; depth >70 mm.

Dolby Atmos · high-impact bass

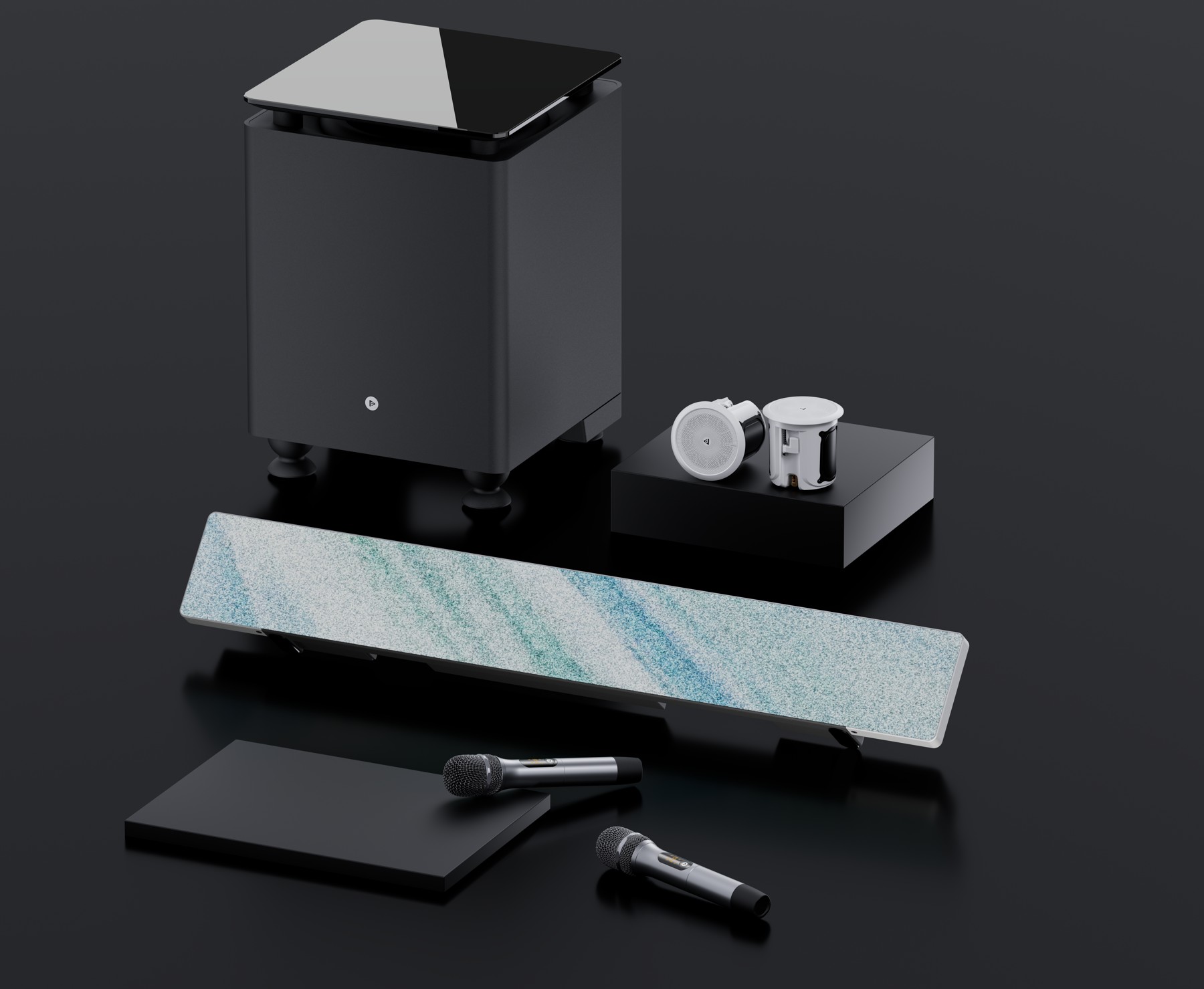

UT-1 + S10r

Recommended for rooms above 30 m² seeking Atmos effects and deeper bass. Larger spaces can add rear surrounds and multiple S10r subwoofers.

Package: UT-1 ×1 · S10r ×1 · microphones ×2 · i9 ×2

Choose surround speakers to update the kit image:

Selected: i9 ×2

Explore full system ↗

Package and component specifications

UT-1Dolby Atmos; 5 drivers; 400 W short-term RMS; 60 Hz–20 kHz; 800 × 60 × 112 mm; scene switching and dual-mic ECHO.

S10rDual 10-inch; 1,000 W short-term RMS; 25 Hz–200 Hz; 119 dB max output; 80–160 Hz crossover; 5.8 GHz wireless.

Surround choicesi9 ×2/4; i8 Pro ×2/4; or WS-1 ×2. Check cutout and depth requirements against the room before installation.

In the boxUT-1 ×1, S10r ×1, wireless microphones ×2, plus the selected surround configuration listed in the catalog.

Background music

Music that fits the room.

For bedrooms, everyday listening and zoned audio in commercial spaces.

Bluetooth + AUX

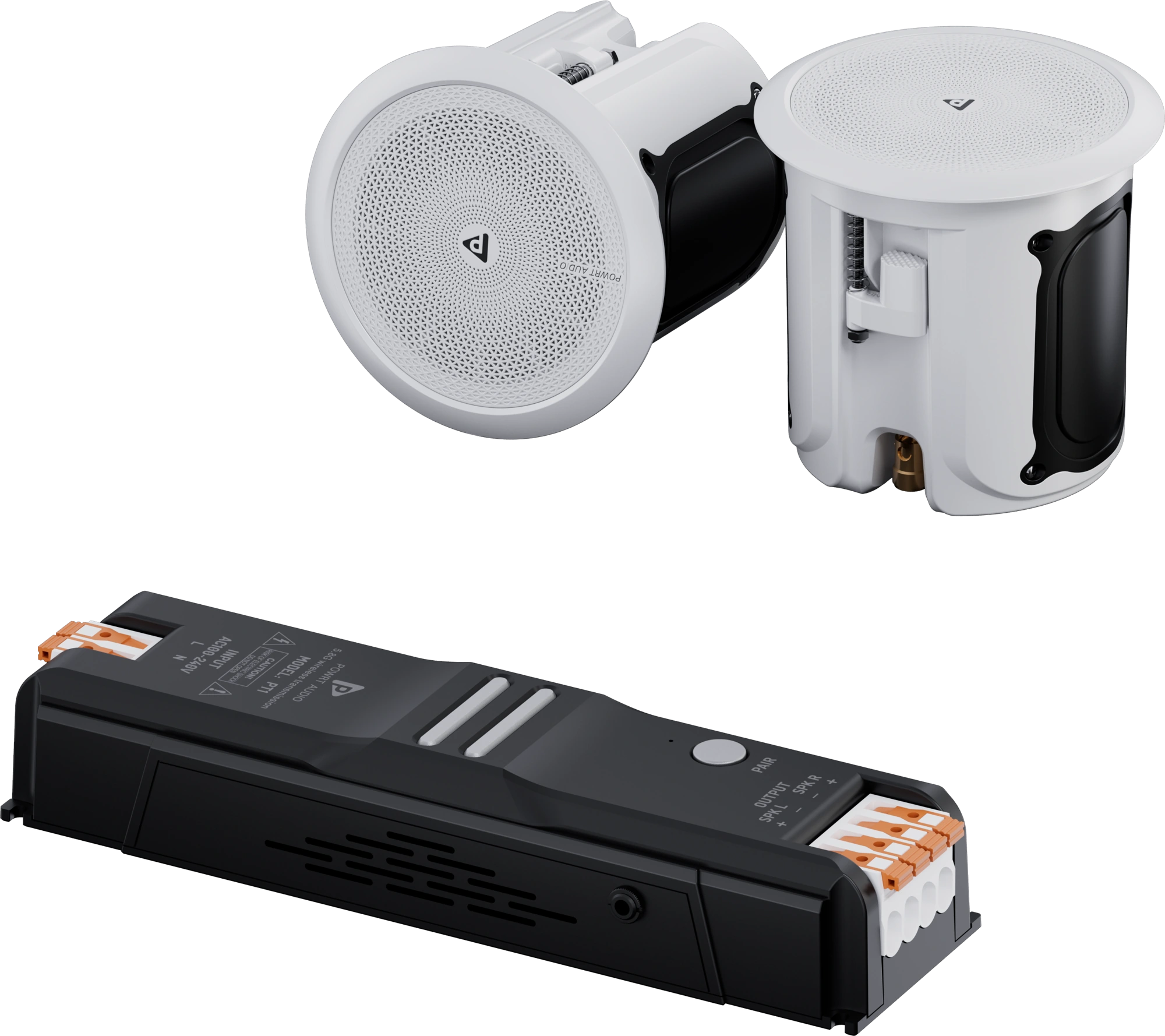

PT1 + i9 in-ceiling speakers

A dedicated source paired with in-ceiling speakers for home or commercial listening zones.

Speaker options: i9 in-ceiling pair · i8 Pro option

20–180 W output5.8 GHz wireless

Explore i9 →

System and speaker specifications

PT1Bluetooth and AUX input; Bluetooth 5.3; 5.8 GHz wireless; output 20–180 W; 500 mV input sensitivity.

i9 in-ceiling speakers65 Hz–20 kHz in-wall; 20–80 W; 86 dB/W/m; 106 dB max; 6 Ω; cutout Ø90–95 mm, depth >100 mm.

i8 Pro option2.5-inch; 50 Hz–20 kHz in-wall; 20–100 W; 88 dB/W/m; 108 dB max; 6 Ω; cutout Ø85 mm, depth >70 mm.

Dedicated source input

PR1 + i9 in-ceiling speakers

A source option for bedrooms, shared areas and commercial background music zones.

Speaker options: i9 in-ceiling pair · i8 Pro option

20–180 W output5.8 GHz wireless

Explore i9 →

System and speaker specifications

PR1Catalog-listed PR1 input; Bluetooth 5.3; 5.8 GHz wireless; output 20–180 W; 500 mV input sensitivity.

i9 in-ceiling speakers65 Hz–20 kHz in-wall; 20–80 W; 86 dB/W/m; 106 dB max; 6 Ω; cutout Ø90–95 mm, depth >100 mm.

i8 Pro option2.5-inch; 50 Hz–20 kHz in-wall; 20–100 W; 88 dB/W/m; 108 dB max; 6 Ω; cutout Ø85 mm, depth >70 mm.

PT1 and i8 Pro background music configuration

Compact in-ceiling music

PT1 + i8 Pro

For bedrooms and commercial music zones needing a compact speaker with a shallow installation depth.

Components: PT1 source + i8 Pro in-ceiling speakers

50 Hz–20 kHzØ85 mm cutout108 dB max

Explore i8 Pro →

System and speaker specifications

PT1Bluetooth and AUX input; Bluetooth 5.3; 5.8 GHz wireless; 20–180 W output; 500 mV input sensitivity.

i8 Pro2.5-inch; 50 Hz–20 kHz in-wall; 20–100 W; 88 dB/W/m; 108 dB max; 6 Ω; dimensions Ø100 × 67 mm; cutout Ø85 mm, depth >70 mm.

PR1 and i8 Pro background music configuration

Compact in-ceiling music

PR1 + i8 Pro

For bedrooms and commercial music zones needing a compact speaker with a shallow installation depth.

Components: PR1 source + i8 Pro in-ceiling speakers

50 Hz–20 kHzØ85 mm cutout108 dB max

Explore i8 Pro →

System and speaker specifications

PR1Catalog-listed PR1 source option; Bluetooth 5.3; 5.8 GHz wireless; 20–180 W output; 500 mV input sensitivity.

i8 Pro2.5-inch; 50 Hz–20 kHz in-wall; 20–100 W; 88 dB/W/m; 108 dB max; 6 Ω; dimensions Ø100 × 67 mm; cutout Ø85 mm, depth >70 mm.

All package combinations and figures are based on the 2026 POWRT catalog. “Short-term RMS” is retained from the catalog. Speaker quantities: i9 / i8 Pro ×2 or ×4; WS-1 ×2. POWRT recommends C28r for 20–30 m² and S10r above 30 m²; larger spaces may add surrounds and subwoofers.

Need help choosing?

Compare room size, installation conditions and how you plan to use the system.

Contact POWRT →

Catalogs & user manuals

Get the 2026 catalogs in English and Chinese, plus bilingual manuals for UT-1, BAR7.1, C28r and S10r.

Downloads

Plan the room before choosing your system.

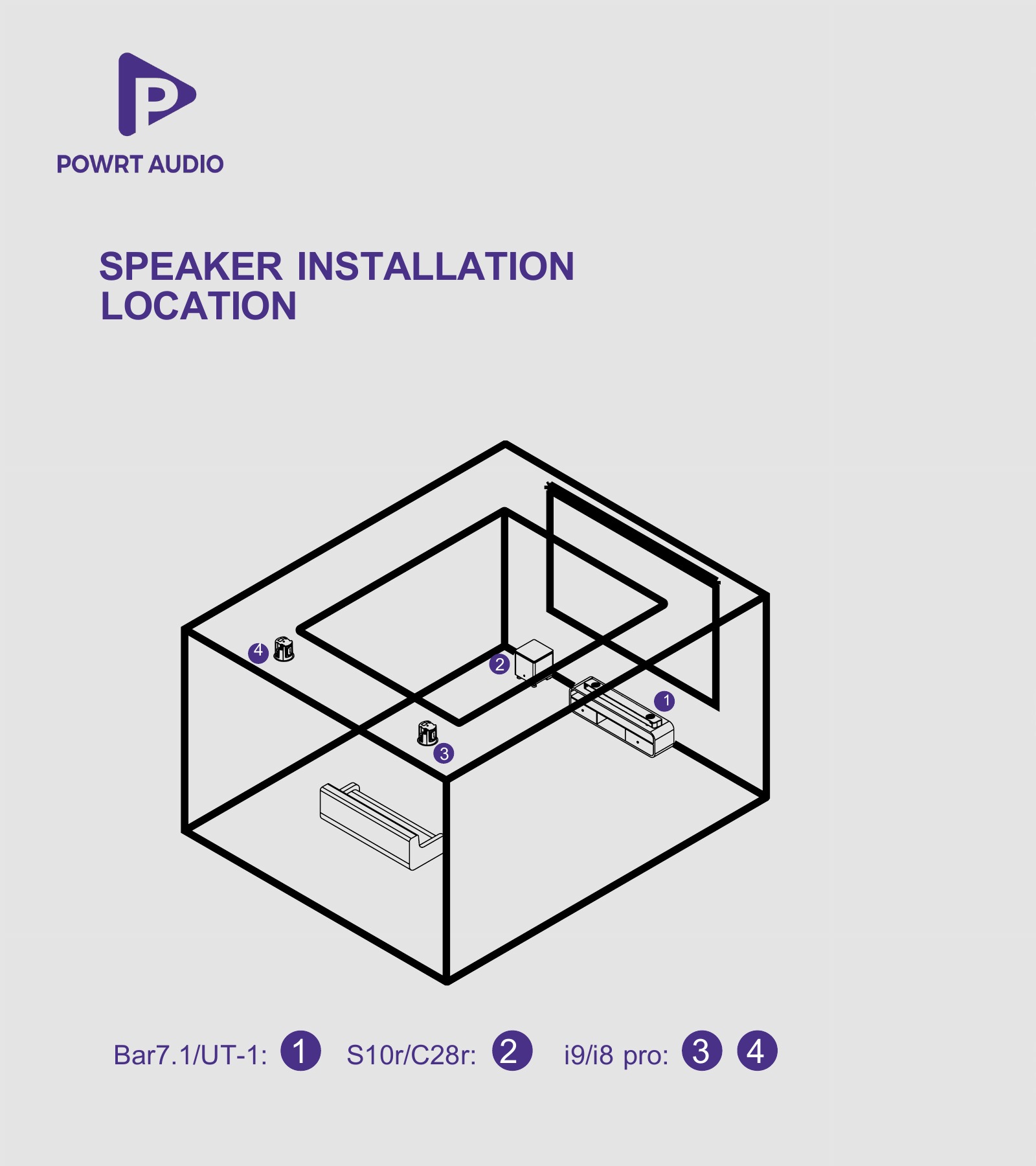

See the original catalogue diagrams for soundbar, subwoofer and surround positions. Choose C28r for 20–30 m² or S10r above 30 m². Larger spaces can add surrounds and subwoofers; adapt positions to seating, ceiling and room conditions.
